| Tên thương hiệu: | Realpark |
| Số mẫu: | RP-ENTRY-TS01 |
| MOQ: | 10 bộ |
| giá bán: | Welcome to contact us! |
| Thời gian giao hàng: | 4-6 tuần |
| Điều khoản thanh toán: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |

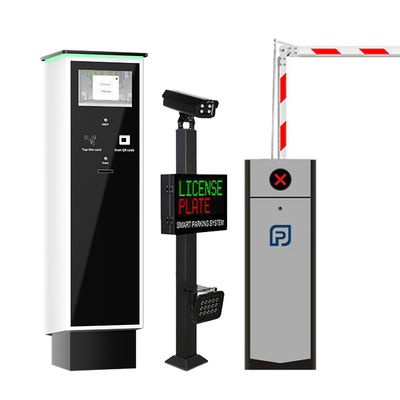

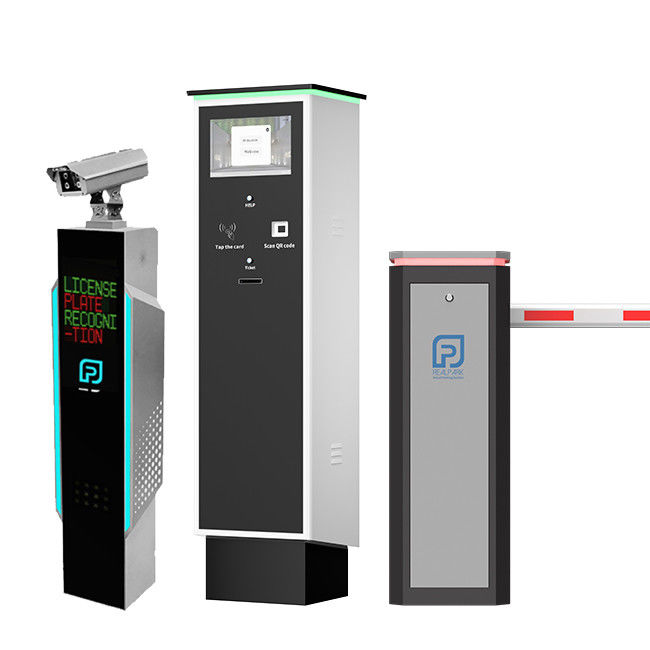

Parking Lot Kiosk With NFC Card &Ticket Printer for Entry Ticket Parking Machine
The RP-Entry-TS01 is a high-efficiency parking entry kiosk designed for seamless access control and ticket management. Equipped with NFC card recognition and a built-in ticket printer, it ensures smooth entry for both registered users (via NFC) and visitors (via printed tickets). Ideal for parking lots, garages, toll stations, and gated communities, this rugged kiosk enhances security while reducing manual operations.
✅ Reduces Queues – Fast NFC/ticket entry minimizes wait times.
✅ 24/7 Automation – No need for on-site staff.
✅ Prevents Fraud – Unique ticket codes + NFC authentication.
✅ Easy Integration – Connects to barriers, payment terminals, and LPR systems.
✅ Low Maintenance – Built for heavy-duty, long-term use.
Shopping Malls & Commercial Parking
Airports & Train Stations
Office Buildings & Gated Communities
Temporary Event Parking
Municipal & Smart City Projects
| Parking Entry Payment Ticket Kiosk Specification | |
| Core Parameters | CPU: 4 Core, 1.8G, Cortex-A55 |
| Memory: Memory 2-8GB, | |
| Interface | Support TF, Optional, Max: 128G Supports 6 USB HOST, 1 USB OTG2 serial port for USB camera, and supports TTL optional RS232 serial port. 1 set of RS485. Supports external serial device modules (3G module, NFC module, printer, card reader, etc.) 1 set of I2C port //*TF card, supports up to 128GBD class extra large built-in speaker, 5W/8Ω *2 supports microphone |
| General Parameters | Power supply: input: AC100-240V, 50-60HZ, out put: DC12V 4A |
| Operating temperature range: -20℃ to +60℃. | |
| 1.5 mm steel housing (Anti-corrosion treated) | |
| Easy Access to internal components through front door equipped with a security lock. | |
| All components easily accessible. | |
| Customized side/front panel color | |
| Customized housing and side/front panel colors. | |
| Internal Components | 10.1-inch Color LCD screen |
| Thermal printer for the printing of parking tickets. | |
| QR code scanner for the reading of all types of parking tickets. | |
| Android control board. | |
| Thermostatically controlled cooling system with fan. | |
|
Power supply with isolation switch. |
|
